Dragonfish Pro Series: Advanced Multi-Mission eVTOL for Critical Operations

Product Detail

Product Tags

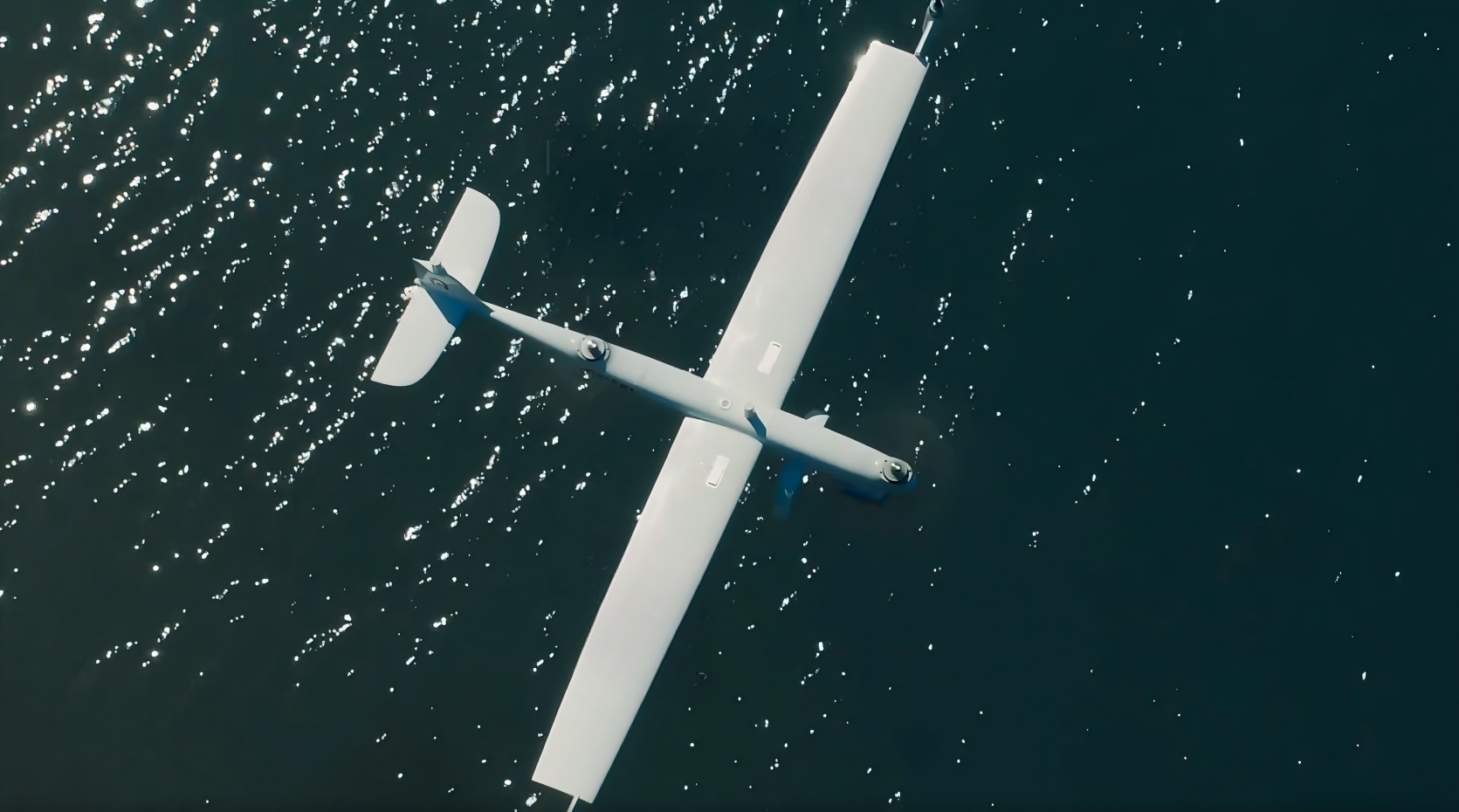

Dragonfish Pro Series: Next-Generation Multi-Mission eVTOL

Engineered for Long-Endurance, All-Weather, and Fully Autonomous Critical Operations

Dragonfish Pro Series: Next-Generation Multi-Mission eVTOL

Engineered for Long-Endurance, All-Weather, and Fully Autonomous Critical Operations

Silent Flight

The Dragonfish achieves ultra-silent flight through its exceptional propulsion system and innovative noise-reduction design. Barely audible above 400 ft (120m) AGL*, the DF significantly reducing the risk of detection while ensuring operational secrecy.

Learn More >>

Silent Flight

The Dragonfish achieves ultra-silent flight through its exceptional propulsion system and innovative noise-reduction design. Barely audible above 400 ft (120m) AGL*, the DF significantly reducing the risk of detection while ensuring operational secrecy.

Learn More >>

Superior Anti-Interference

In complex environments, the UAV maintains exceptional communication and video transmission performance, featuring strong anti-interference capabilities and stable, reliable transmission.

Superior Anti-Interference

In complex environments, the UAV maintains exceptional communication and video transmission performance, featuring strong anti-interference capabilities and stable, reliable transmission.

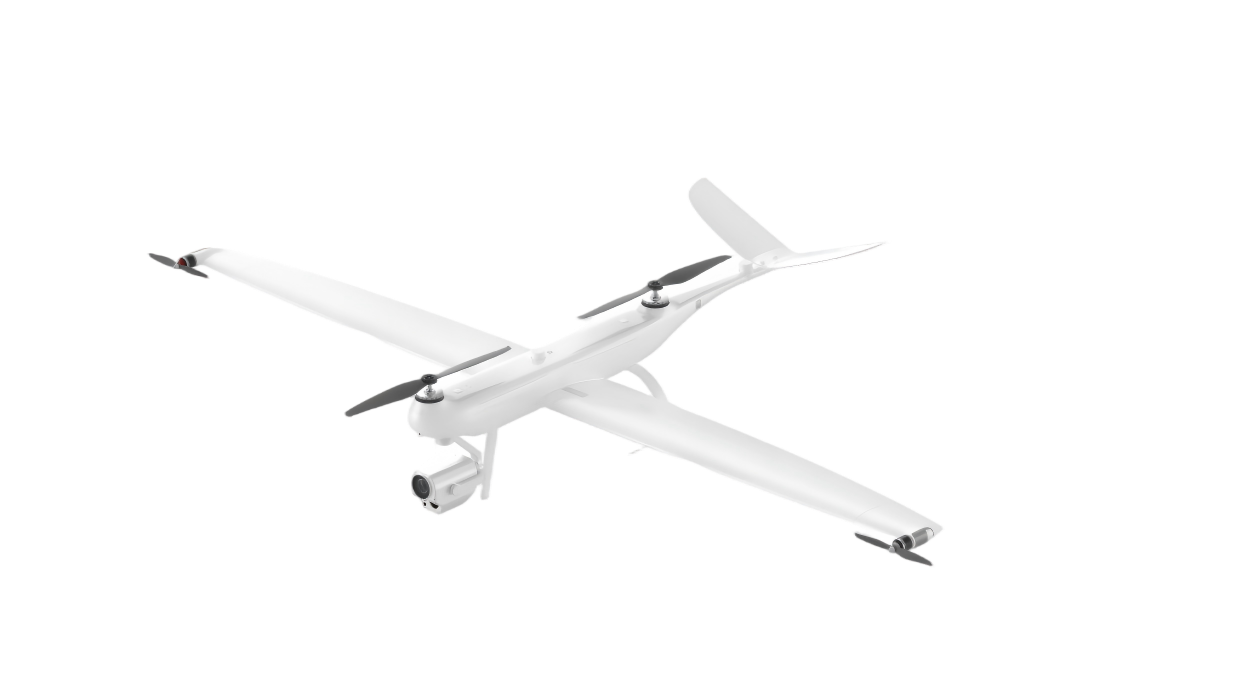

Why Professionals Choose Dragonfish Pro ？

GNSS Loss Protection

When operating in non-GNSS environments, the UAV activates landing protection, automatically descending from its current position to ensure safety.

Low-Battery Return

Users can customize the expected landing battery level. The UAV calculates the optimal return timing in real-time based on current battery levels and flight status, ensuring it lands with a battery level close to the user-defined threshold.

Lost-Signal Return

If signal between the UAV and the ground station is interrupted, the loss-of-connection protection activates. If GNSS signals are available, the UAV initiates automatic return-to-home.

Emergency Manual Override

In case of an emergency, you can switch the remote controller to M mode at any time to immediately take manual control, ensuring flight safety.

Multiple Redundancies, Ensuring Mission Safety

The eVTOL features multi-level redundancies across key components (batteries, sensors, communication buses) and autonomous mode switching, ensuring stable flight and reliable performance even in complex environments.

One-Tap Self-Check

Automatically performs a system check before takeoff, ensuring every flight is safe and reliable.

One-Button Return

Easily return to home via the Home button. Convenient Storage: Quickly organize after flight, easy to store and ready for the next use.

Intelligent Tracking

The UAV can lock on to its targets and flexibly adjust its flight path. Supports multiple tracking modes.

Mobile Platform Takeoff and Landing

Supports takeoff and landing on moving platforms.

Specs of Dragonfish Pro

Specification	Details
Type	Next-Gen Tilt-Rotor eVTOL (Vertical Takeoff & Landing) UAV
Dimensions	3025.7 × 4566 × 823.6 mm (with propellers) 2735 × 4566 × 823.6 mm (without propellers)
Weight	29 kg (incl. batteries, propellers, excl. gimbal)
Max Payload Capacity	10 kg (extra payload weight)
Max Flight Time	270 min (empty payload) 210 min (with DG-T5 gimbal payload)
Max Flight Mileage	220 km (with DG-T5 gimbal payload)
Max Horizontal Speed	126 km/h (35 m/s)
Max Wind Resistance	12 m/s (Level 6 wind in fixed-wing mode)
Max Service Ceiling	5000 m above sea level
Operating Temperature	-20°C to 50°C
IP Rating	IP45
GNSS Support	GPS + Galileo + BDS + GLONASS
Max Signal Range	60 km (control & video transmission)
Deployment Time	≤10 minutes from transport to takeoff (quick-release assembly)
